XMLHttpRequest

What is it?

It's an object.

Not part of the DOM: it's proprietary!

Used to be called 'Remote Scripting'.

Invented by Microsoft (IE5).

Mozilla followed suit (Netscape 7).

Safari 1.2+, Opera 8+

Lives in limbo

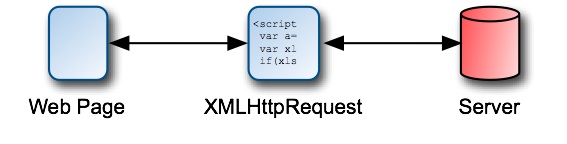

Imagine this object sitting between the client and the server.

Create an instance

• function getHTTPObject() {

•   var xhr = false;

•   if (window.ActiveXObject) {
      xhr = new ActiveXObject("Microsoft.XMLHTTP");

•   } else if (window.XMLHttpRequest) {
      xhr = new XMLHttpRequest();

•   }
    return xhr;
  }

Three cornerstones

1. The onreadystatechange event handler.
2. The open method.
3. The send method.

The onreadystatechange event handler

xhr.onreadystatechange = function() {
  doSomething(xhr);
};

The readystatechange event is triggered every time the readyState property changes.

This event is triggered from the server.

The open method

xhr.open(method,file,asynchronous?);

Accepts three parameters

• A string containing the method:
  "GET" or "POST"
• A string containing a path to a file on the same server: e.g.
  "myfile.xml" or "/includes/myotherfile.php"
• A boolean value indicating whether the request should be asynchronous:
  true or false

The send method

xhr.send(data);

Accepts one parameter: any data to be sent to the server.

• null for the "GET" method
• A query string of name/value pairs for the "POST" method

  foo=bar&message=Hello+world

Prepare your transmission

• function grabFile(file) {

•   var request = getHTTPObject();
    if (request) {

•     request.onreadystatechange = function() {
        doSomething(request);
      };

•     request.open( "GET", file, true );

•     request.send(null);
    }
  }

The readyState property

• 0 uninitialized
• 1 loading
• 2 loaded
• 3 interactive
• 4 complete

Testing for readyState

• function doSomething(request) {

•   if (request.readyState ==4) {

• //    my code goes here
    }
  }


The status property

Returns a standard server response e.g. 404, 303, 500, etc.

200 is what you want.

Testing for success

• function doSomething(request) {

•   if (request.readyState ==4) {

•     if (request.status == 200) {
  //      it worked
      } else {
  //      something went wrong
      }
    }
  }


What you get back

• The responseXML property

  Must be sent from the server with the correct mime type: text/xml

• The responseText property

  A string

Example

Using XMLHttpRequest to display the contents of a text file.

View HTML

View JavaScript

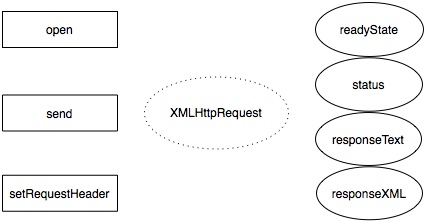

Methods and properties

Next

Which data format should you use?
